NCM Venice Second Hand Trekking E-City Bike (Sydney Only)

NCM Venice Trekking E-Bike, City-Bike, 250W, 48V 13Ah 624Wh Battery, [Black 28]

One of our best-rated models, the NCM Venice is built for comfort and style, perfect for everyday city riding and trekking. The motor and battery are integrated seamlessly into the aluminium frame design, avoiding a cluttered look while still offering top performance in the pedelec category. Featuring components from top established brands and a quality, responsive frame, this E-bike offers the smoothest experience for even the longest rides. It comes with all the features necessary for a lifestyle bike as well: a large cargo rack with 3-strap bungee for carrying panniers or strapping on any kind of bag; lights in the front and rear to illuminate you and the road; mudguards, a bell, and a kickstand. This E-bike is a jack of all trades.

NCM Venice 48V 13Ah Details

General Information
Weight: 28”= 27kg
Type: E-Trekking
Wheel size: 28″
Load capacity: Max. 125kg
Maximum speed: 25 km/h

Electric parts
Motor: Das-Kit, X15 Rear-drive motor, 48V 250W, 25 km/h
Controller: Das-Kit, CT5-I5, 48V 15A
Charger: 48V 2A included (round plug) DC482AU
Battery: DEHAWK I5-4813H,48V 13AH, 624WH, with USB port
Average range: 40-100 km depending on assistance level
Display: LCD Das-Kit L7 display with many functions
Front/Rear Light: Spanninga, Kendo, 48V, 30 Lux Spanninga over the bike battery/ Solo, with 2xAA batteries

Bike parts
Frame: Alu. 6061, 28″*480MM
Handelbar: Promax MA579 adjustable
Fork: Suntour, NEX 28”
Brake Levers: Tektro, left with brake sensor
Brakes F/R: Tektro Mechanical Disc Brakes, MD-M280

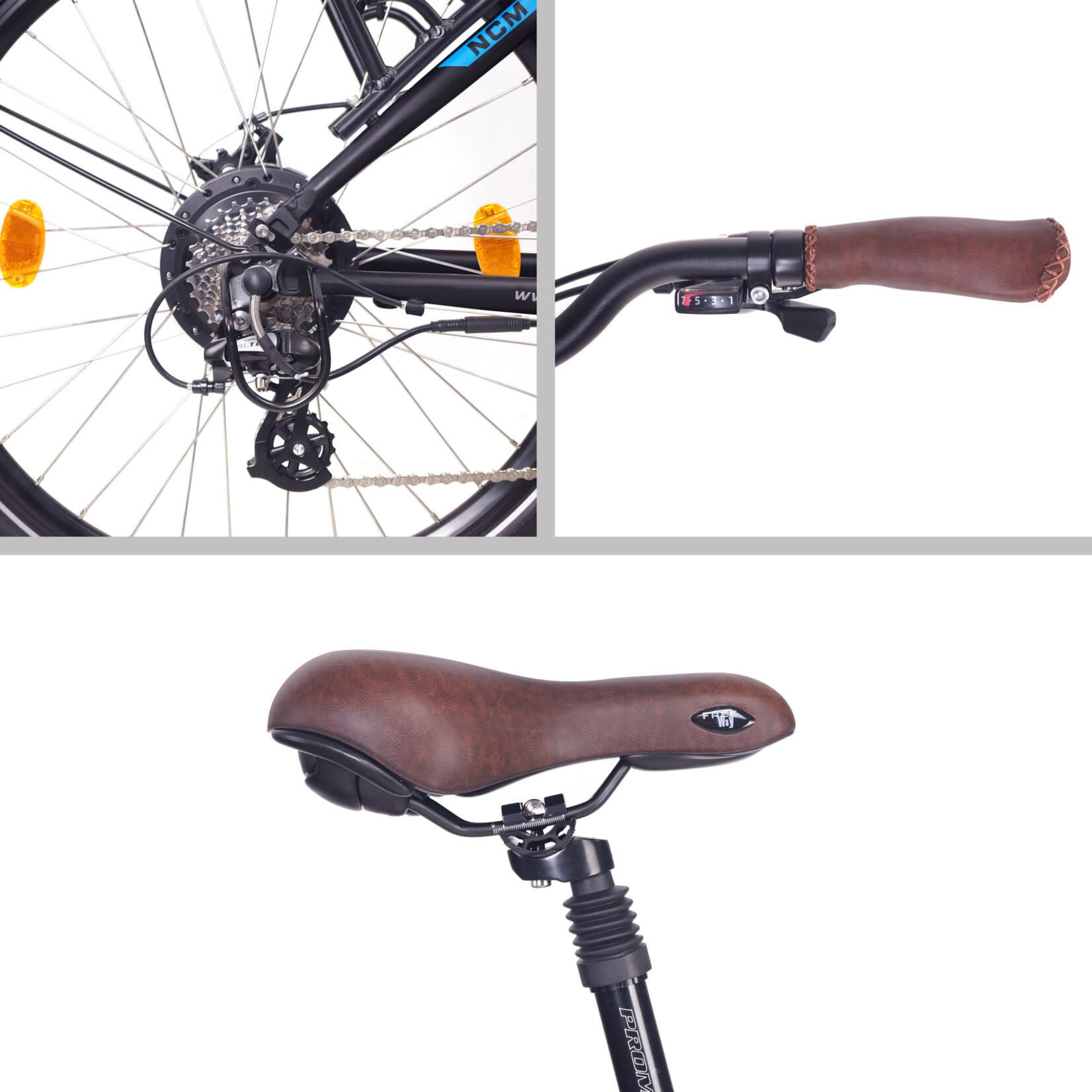

Chain derailleur: Shimano, Altus M310, 7 speed
Crank set: Prowheel, OUNCE-248AC, 48T
Gear shift: Shimano, Altus M310, 7 speed
Pinion: 7-speed screw ring, 14-28T
Tyre: Schwalbe Marathon 28″*1.5 700C black
Saddle: Selle Royal, gel saddle, brown (imitation leather)
Seatpost: Promax, SP-884, with suspension, 27.2*300MM
Handles: Selle Royal, brown (imitation leather)
Pedals: Wellgo, B087, black

Adjustable handlebar & strong DeHawk battery
Ergonomic bicycle Grips
Confortable sitting posture
Easy handling of the components
Adjustable handlebar for a good driving position
All important controls easily accessible
supplied with 48V to deliver a high output power
over 600Wh capacity for a longer distance
reach up to 100km (depending on the conditions)

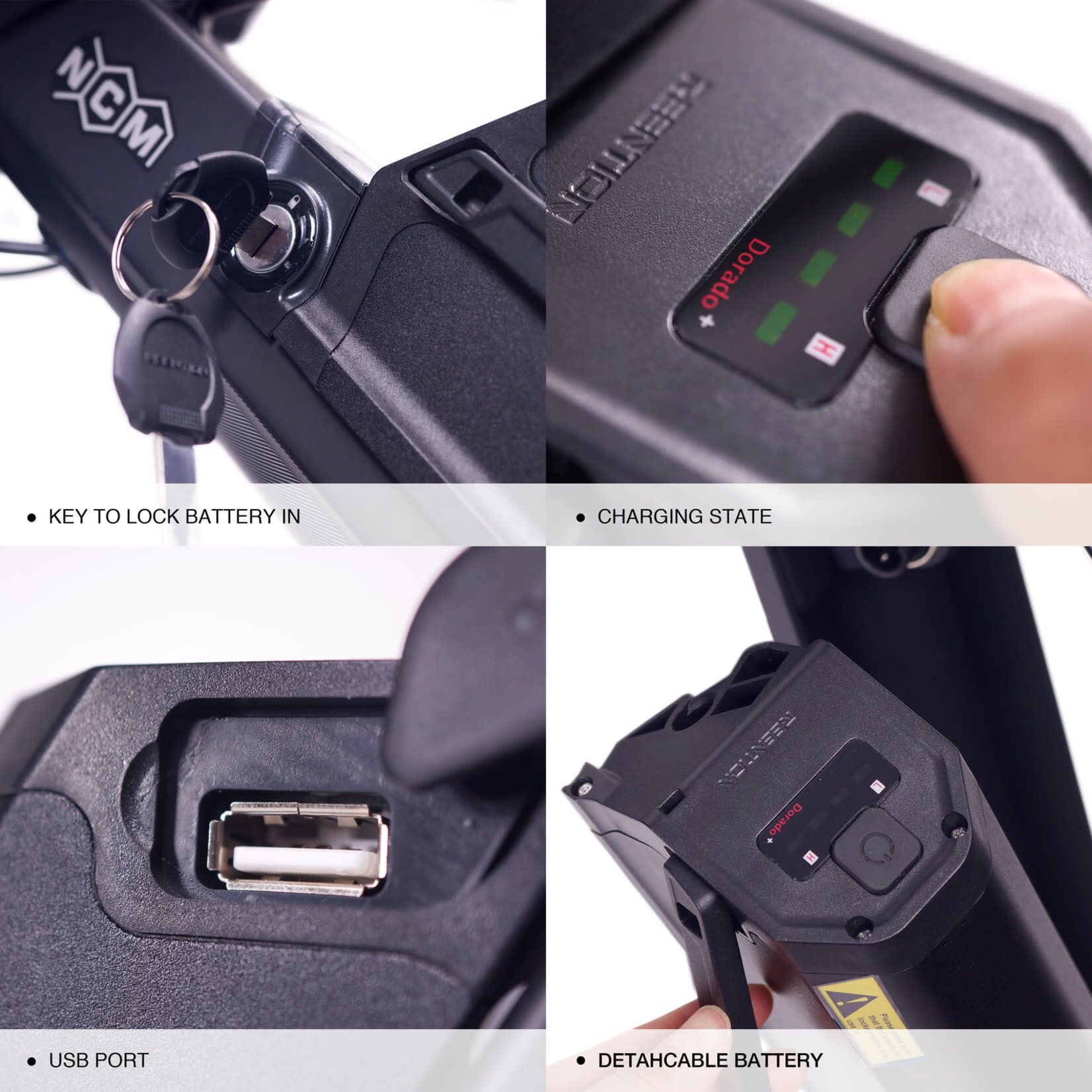

battery integrated in the frame for better aesthetics
easily removable battery so you can charge it anywhere
A built-in USB port with 5V to charge mobile phones

Safe braking performance

Front Brake:

Reliable mechanical disc brake system. The 180 mm brake disc ensures powerful and safe braking at all speeds.

Rear Brake:

Reliable mechanical disc brake system from Tektro. The 160 mm brake disc ensures powerful and safe braking at all speeds.

Das-Kit System

Das-Kit system with a high-contrast LCD display provides all important information at a glance and can also

be read easily in direct sunlight. The LCD display gives good feedback, is extremely robust and easy to use.

The additional power can be individually controlled via six support levels.

It is protected against dirt and splash water.

The rear engine delivers a full torque up to 55 Nm with 250W rated power and 48V voltage.
A large display shows all necessary settings.
6 support levels and a pushing aid of up to 6 km/h are adjustable.
The display’s control buttons are deliberately placed on the left side – close to the left hand – so the driver can easily switch between support levels or displays without having to lift his hand off the handlebars.
