Introduction

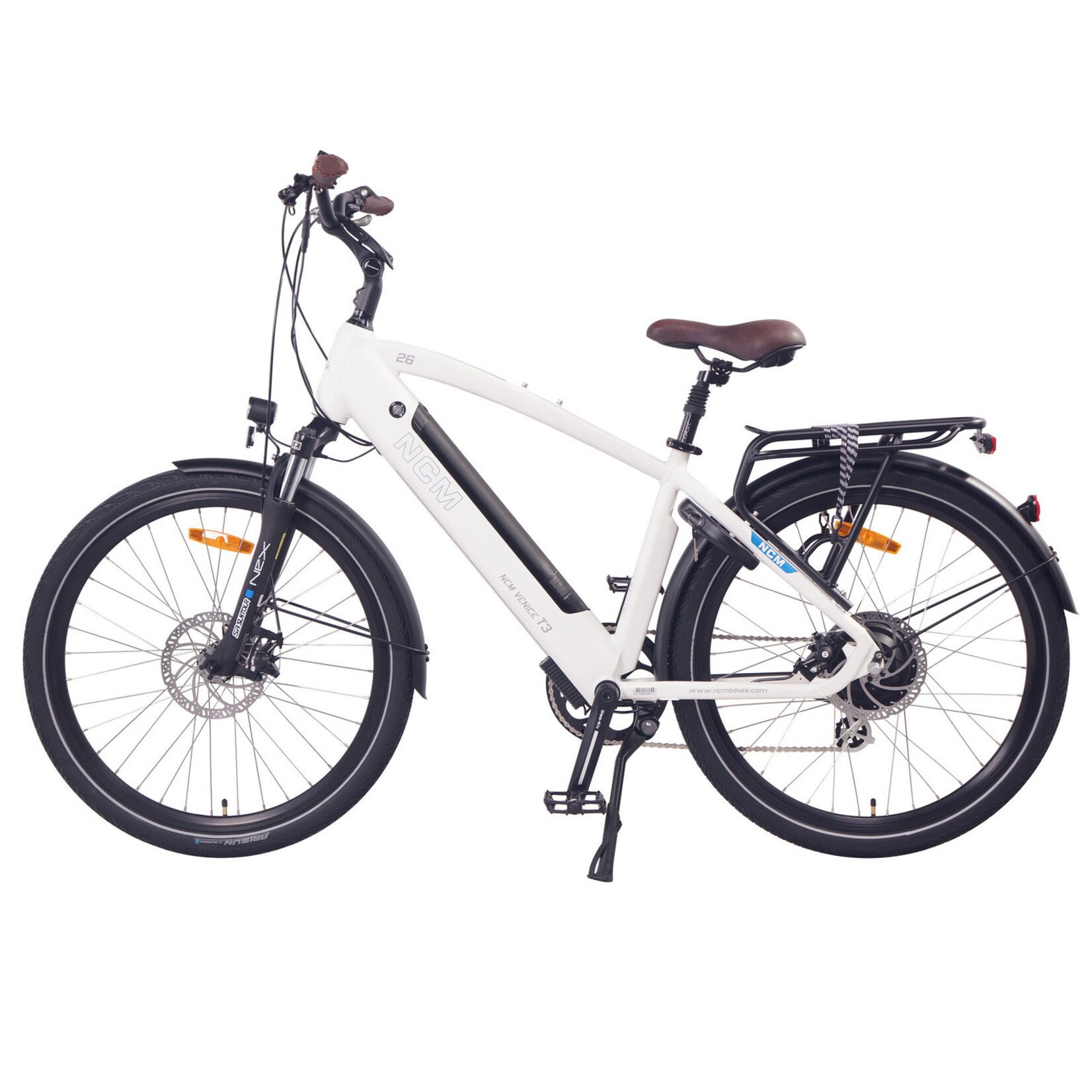

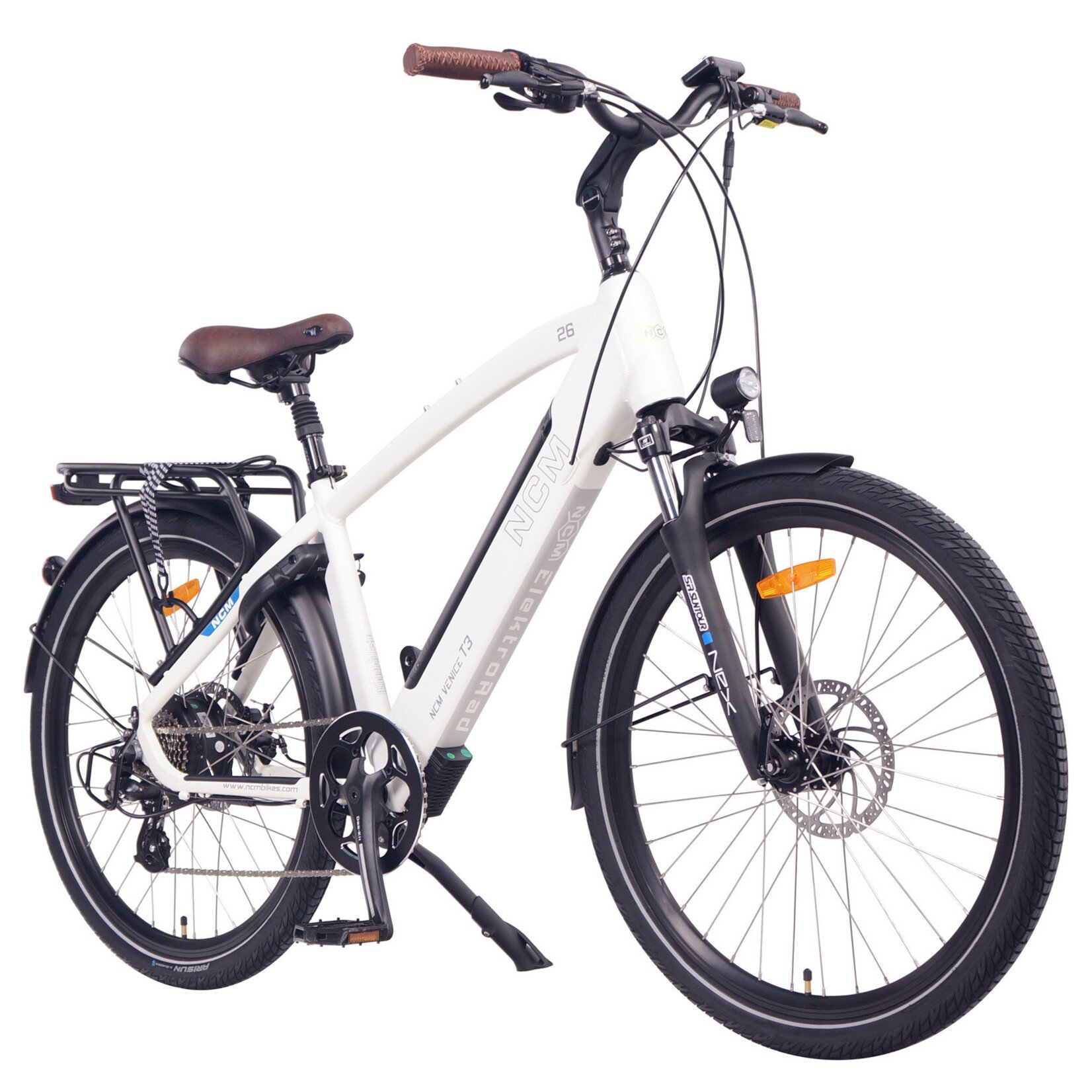

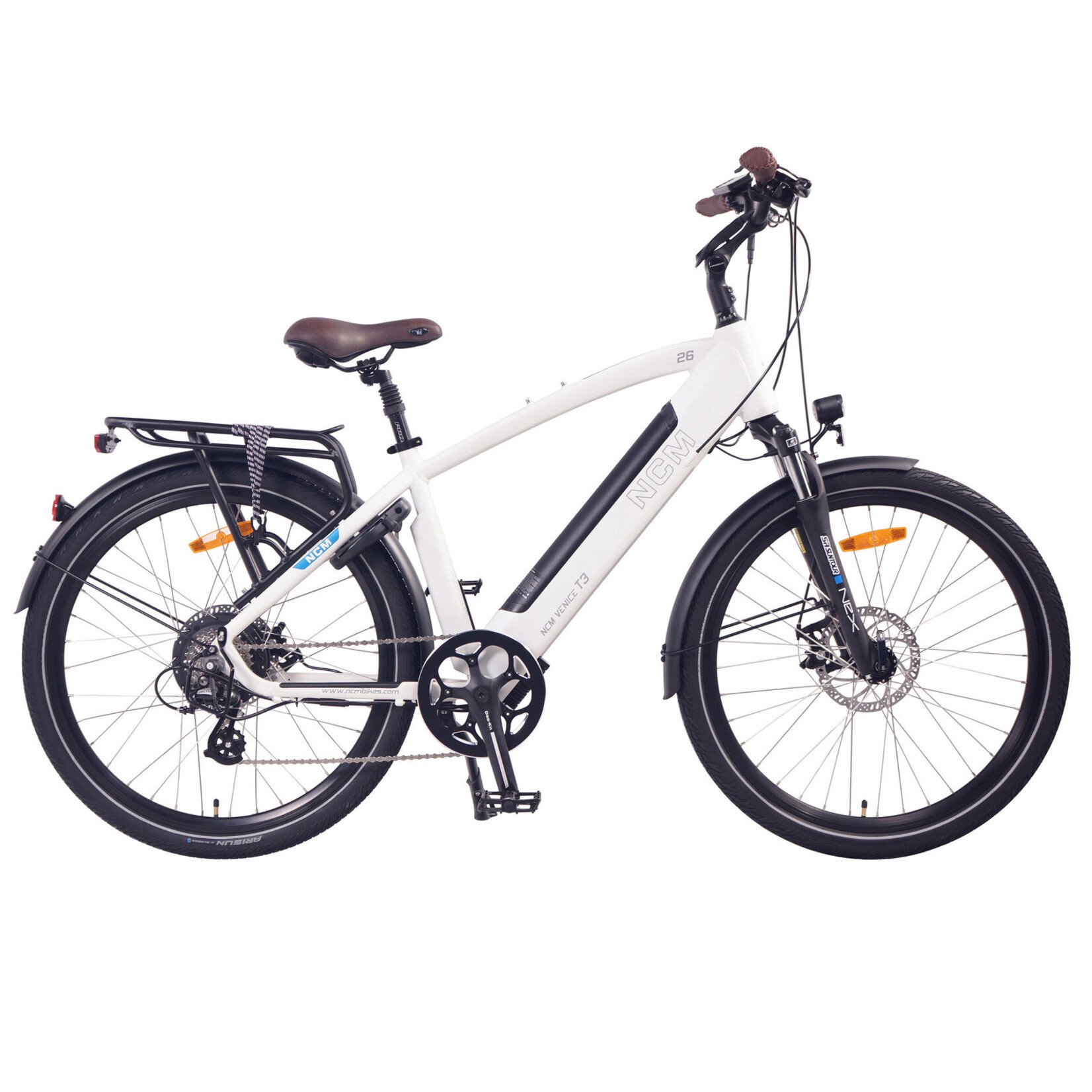

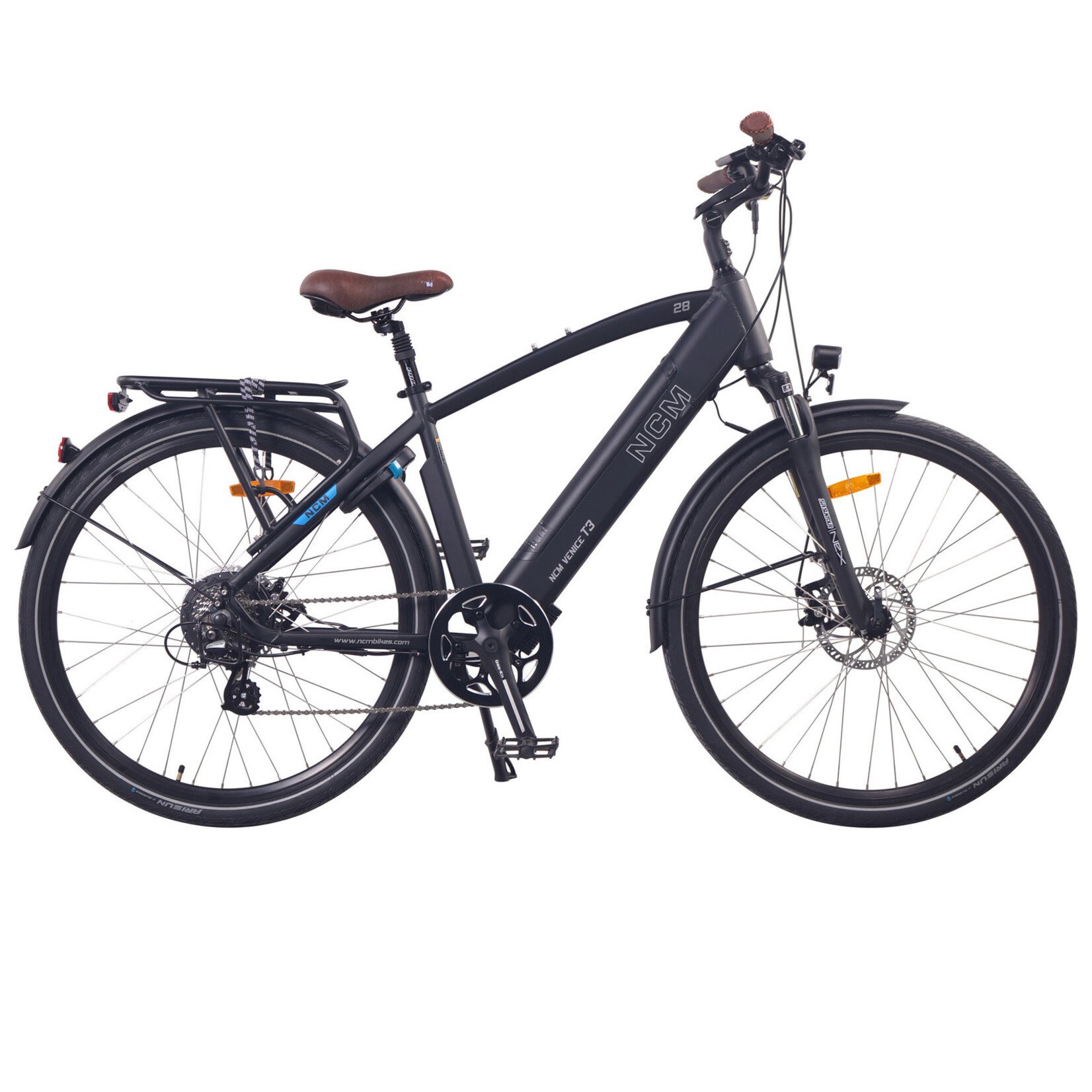

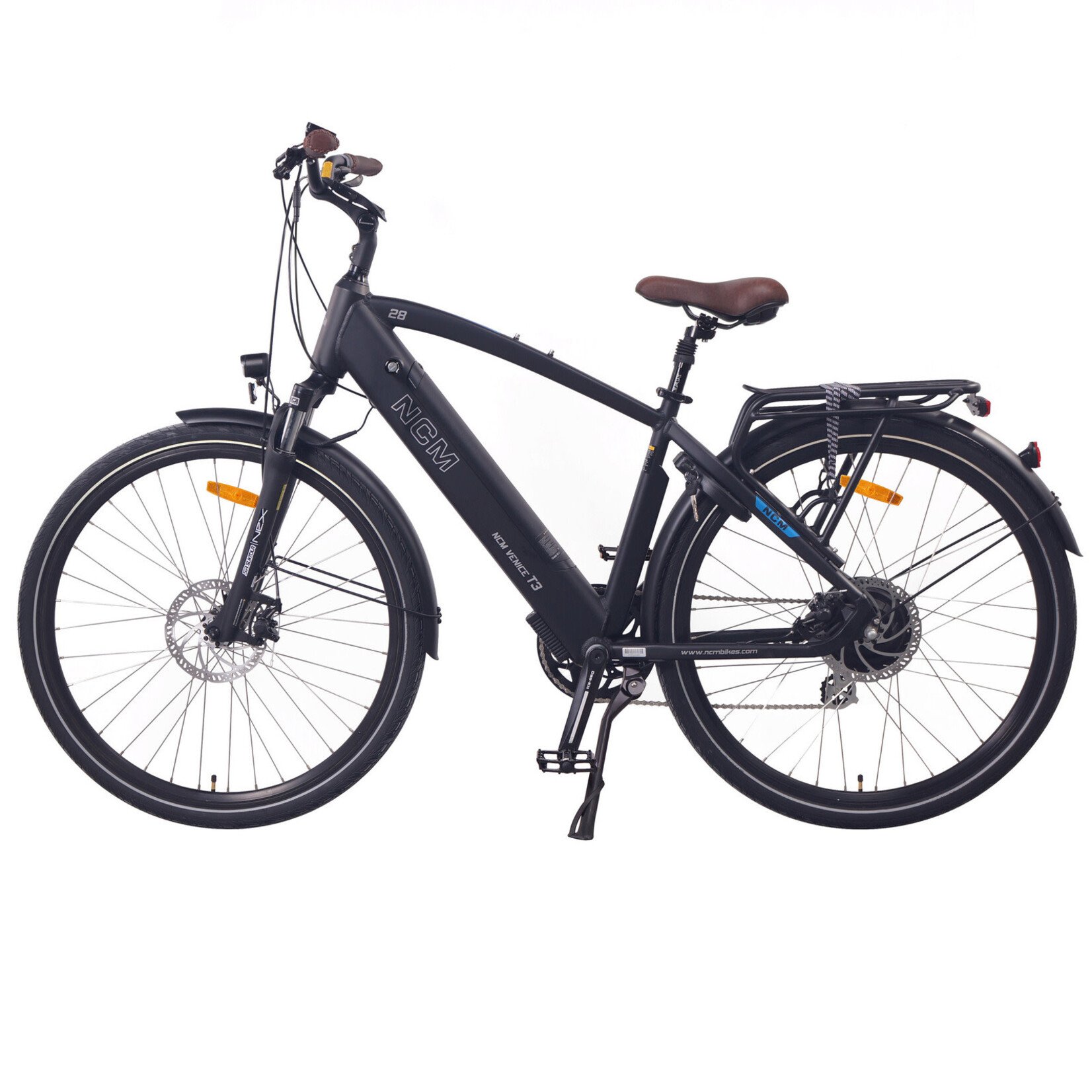

Compared to old Venice, T3 is built with a reinforced integrated battery. Inspired by the Romance on The great Italian City, The NCM T3 is both stylish and very practical. Perfect for running around the city, with a useful rack to the rear for extra storage. This E-bike is designed with a tough aluminium frame, and an adjustable handlebar/stem setup, with a sprung seat for improved comfort.
Key Features

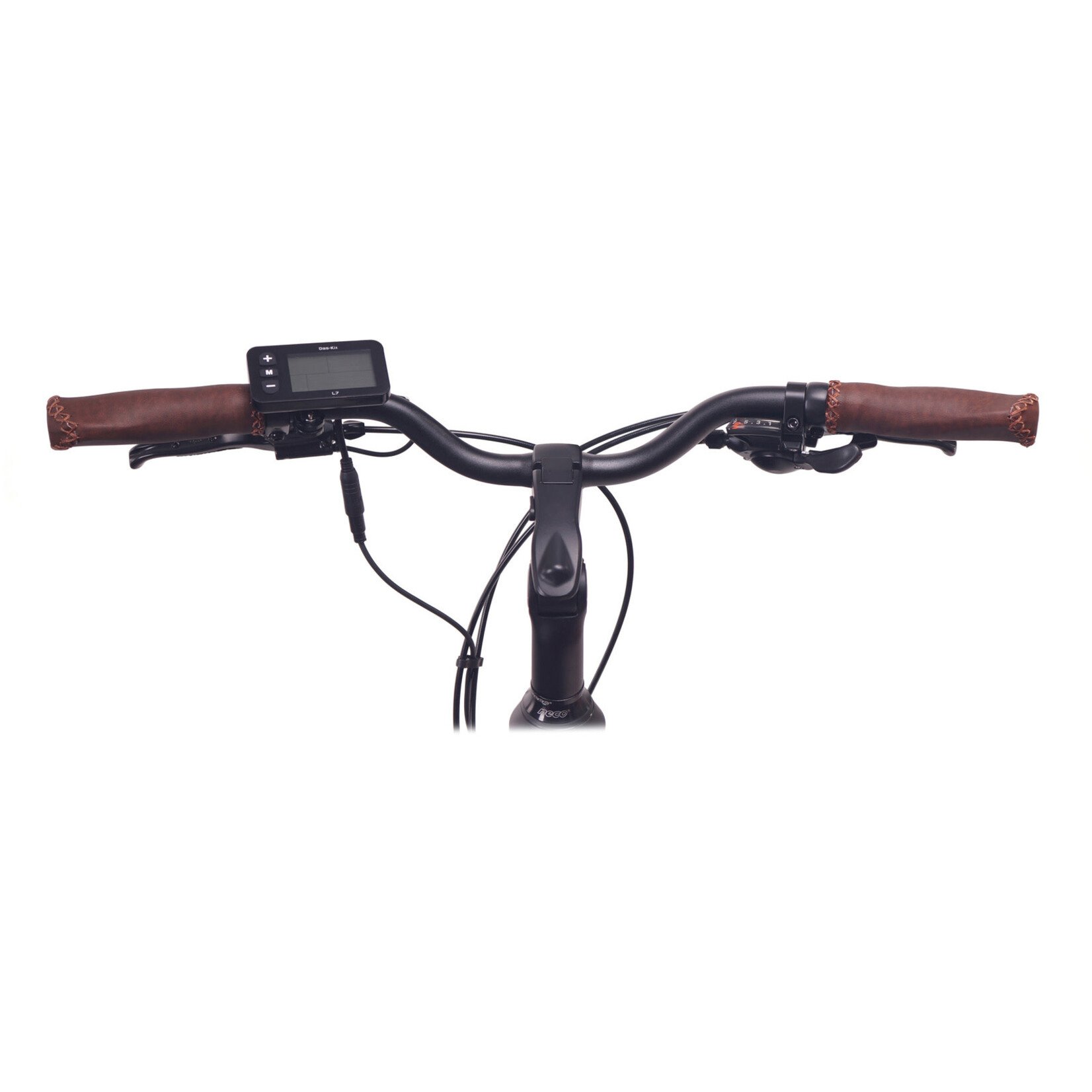

• Ergonomic bicycle Grips
• Comfortable sitting posture
• All important controls easily accessible
• Supplied with 48V to deliver a high output power
• Over 576Wh capacity for a longer distance
• Reach up to 110 km (depending on the conditions)
• Inbuilt Rear Wheel Lock
• Integrated battery for high performance and better aesthetic
• Easily removable battery so you can charge it anywhere

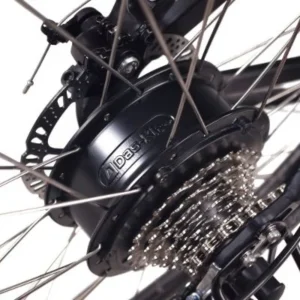

Das kit 250W Motor:

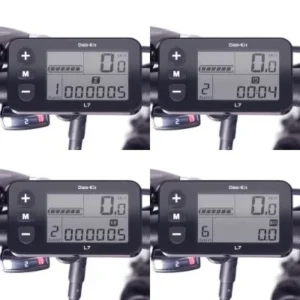

Das Kit L7 Display

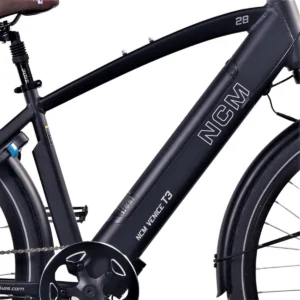

48V Integrated Battery

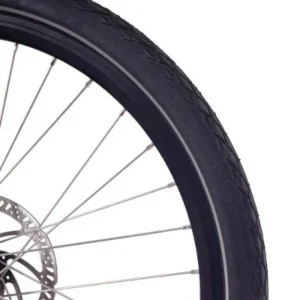

Schwalbe Tyres
Specifications
| NCM T3 | NCM Venice | NCM Venice + | |

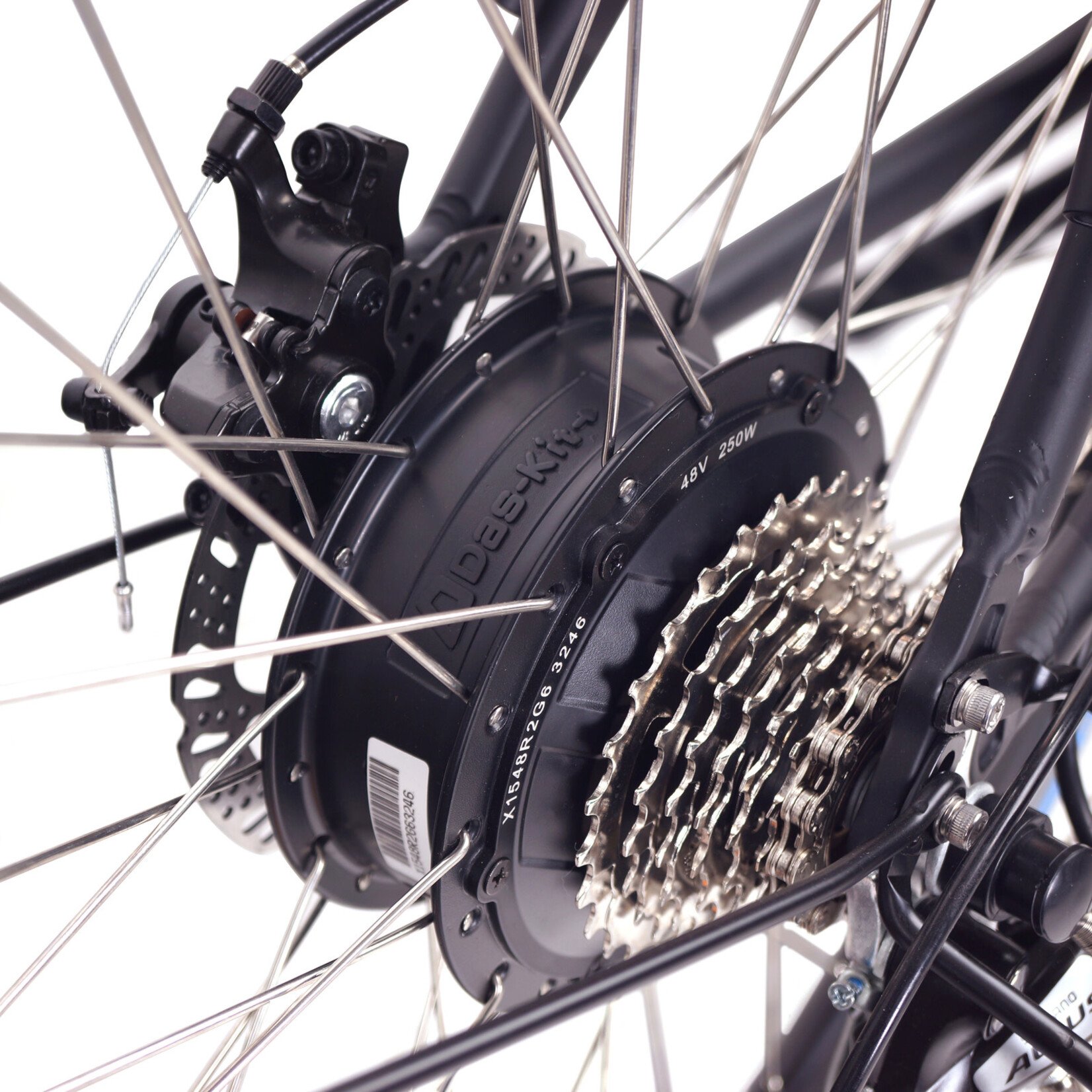

| Motor | Das-Kit X15 motor, 48V 250W, max speed 25 km/h | Das-Kit X15 motor, 48V 250W, max speed 25 km/h | Das-Kit X15 motor, 48V 250W, max speed 25 km/h |
| Battery | Das-kit, i6-4812H, 48v 12Ah 576Wh | DEHAWK i5-4813H 624Wh Panasonic 48v 13Ah | DEHAWK i5-4816P 768Wh Panasonic 48v 16Ah |
| Display | Das-Kit L7, LCD Display | Das-Kit L7, LCD Display | Das-Kit C7, LCD Display |
| Charger | Das-Kit, 48V 2A | SANS 48V 2A | SANS 48V 2A |
| Frame |
Alu. 6061, 26″ x 430mm 28″ x 460mm |
Alu. 6061, 480mm | Alu. 6061, 480mm |
| Forks | Suntour NEX 26 / 28 | Suntour NEX 28 63mm | Suntour NEX 28 63mm |

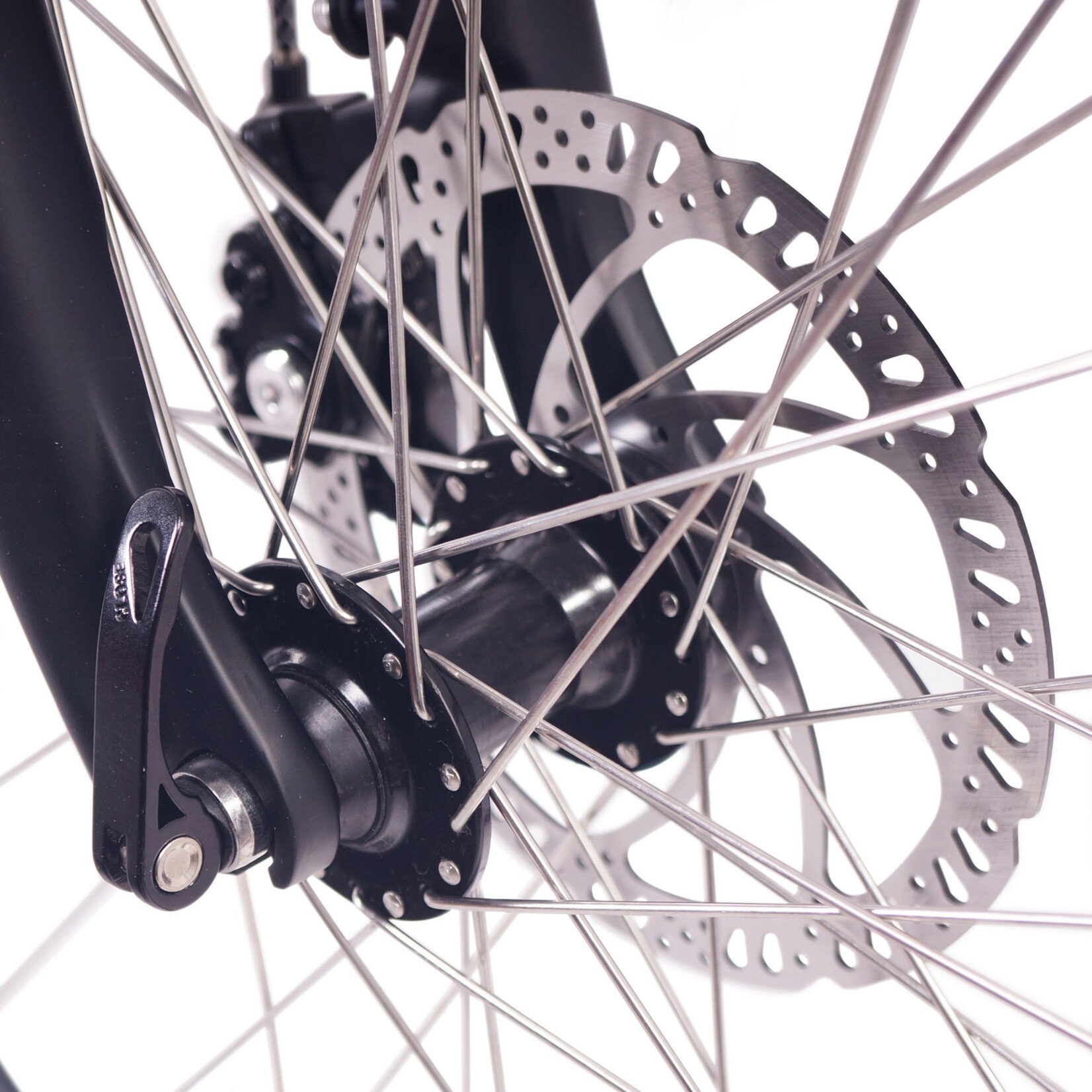

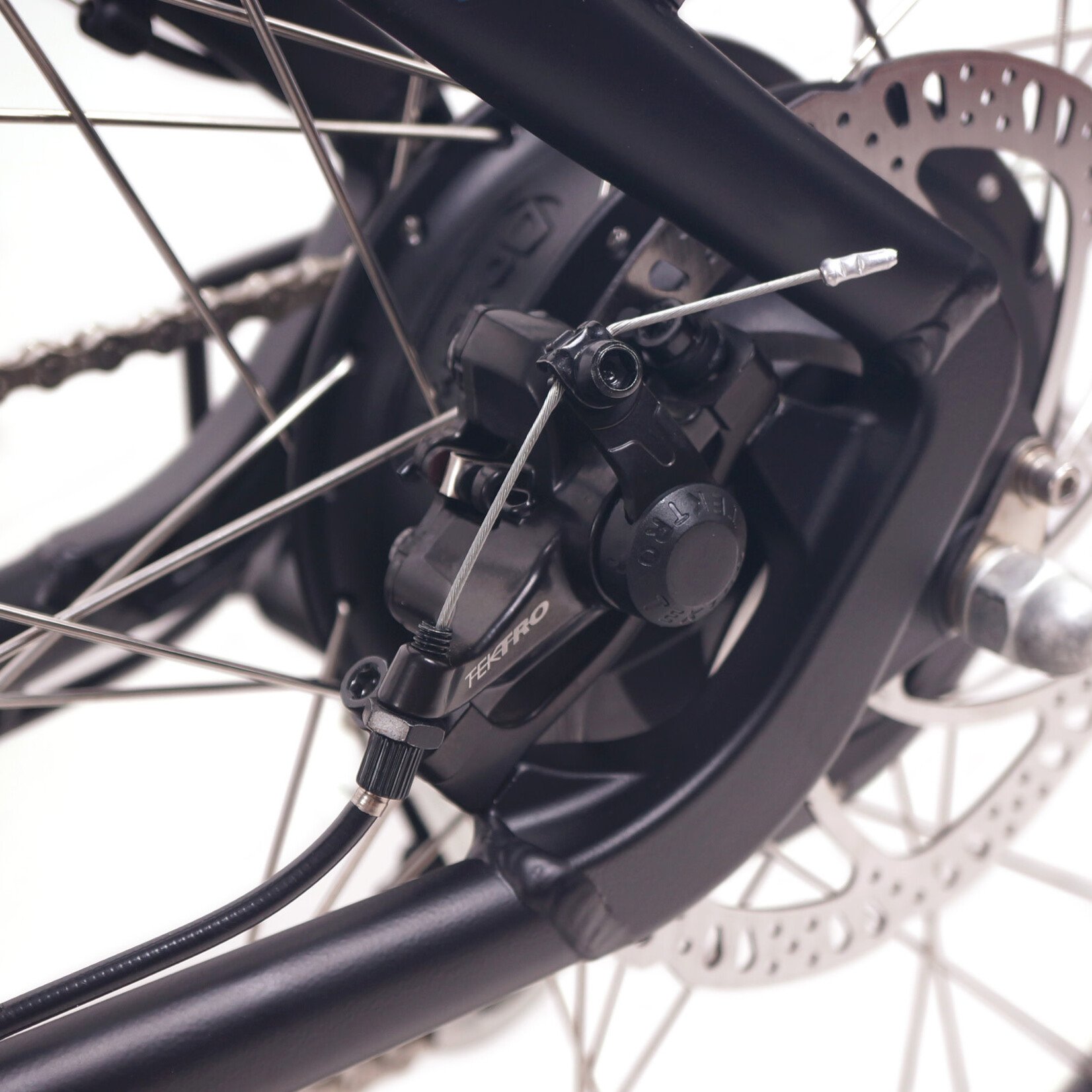

| Braking System | Tektro Mechanical Disc, MD-M280 | Tektro Mechanical Disc |
Tektro Hydraulic Disc |
| Gear Selector | Shimano Altus, 7 speed | Shimano Altus, 7 speed | Shimano Acere, 8 speed |
| Front Derailleur | N/A | N/A | N/A |
| Rear derailleur | Shimano Altus, 7 speed, RD-M310 | Shimano Altus, 7 speed | ShimanoAcere, 8 speed |
| Saddle | Selle Royal, Freeway, Brown | Selle Royal, Freeway, Brown | Selle Royal, Freeway, Brown |
| Tyre | Arisun, H-5213E, 26″ x 1.95 / 28″ x 2.0 | Schwalbe Marathon, 28×1.5 | Schwalbe Marathon, 28×1.5 |
| Handle Grips | Velo, Brown | Velo, Brown | Velo, Brown |
| Pedal | Wellgo, B087 | Wellgo, B087 | Wellgo, B087 |
| Range | Upto 120 km | Upto 120 km | Upto 150 km |
| Weight |

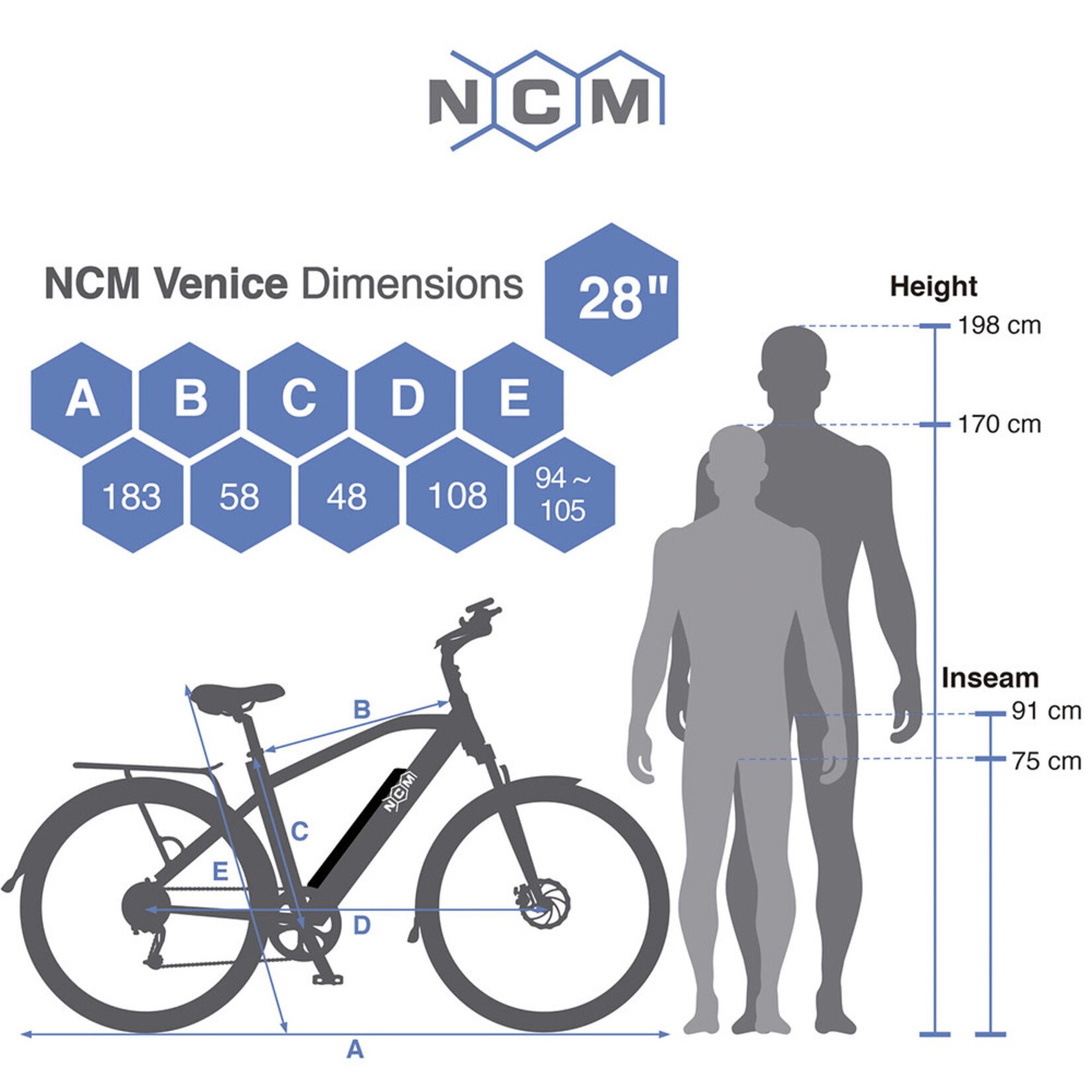

Sizing Chart
| cm | A | B | C | D | E | F | |
|---|---|---|---|---|---|---|---|
 |
Stand Over Height | Wheel Base | Frame Size | Min / Max Seat Height | Reach | Overall Length | |
| Venice 26″ | 170-198 | 78-103 | 107 | 43 | 85/103 | 40 | 173 |
| Venice 28 | 175-198 | 84-89 | 110 | 46 | 91/108 | 39 | 181 |
WARRANTY
- 1 year warranty on all electronic parts (including battery, motor, controller, display, lights)
- 2 year warranty on the bike frame
- Apart from manufacture defects that could be present, parts that wear due to normal use (such as tires, brake pads, chains, spokes, freewheel, tire puncture etc) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months.
- Our bikes are water resistant but not waterproof. Water damage is not covered under warranty.
